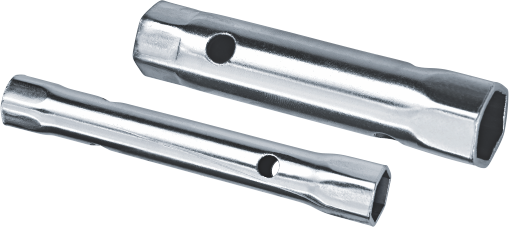

T. BOX SPANNER


Raw Material Hardness/TEMPERED Finish
MILD STEEL 60 HRC CHROME PLATED

SIZE
(mm)		 Length Weight Packaging SIZE
(mm)		 Length Weight Packaging
6X7 110MM 26GM 20 PCS 8X9 110MM 30GM 20 PCS
10X11 120MM 48GM 10 PCS 12X13 140MM 68GM 10 PCS
14X15 140MM 78GM 10 PCS 16X17 150MM 123GM 10 PCS
18X19 160MM 148GM 10 PCS 20X22 170MM 200GM 8 PCS
21X23 170MM 191GM 8 PCS 22X24 170MM 250GM 8 PCS
24X26 190MM 293GM 4 PCS 24X27 190MM 289GM 4 PCS
25X28 190MM 325GM 4 PCS 30X32 200MM 382GM 4 PCS

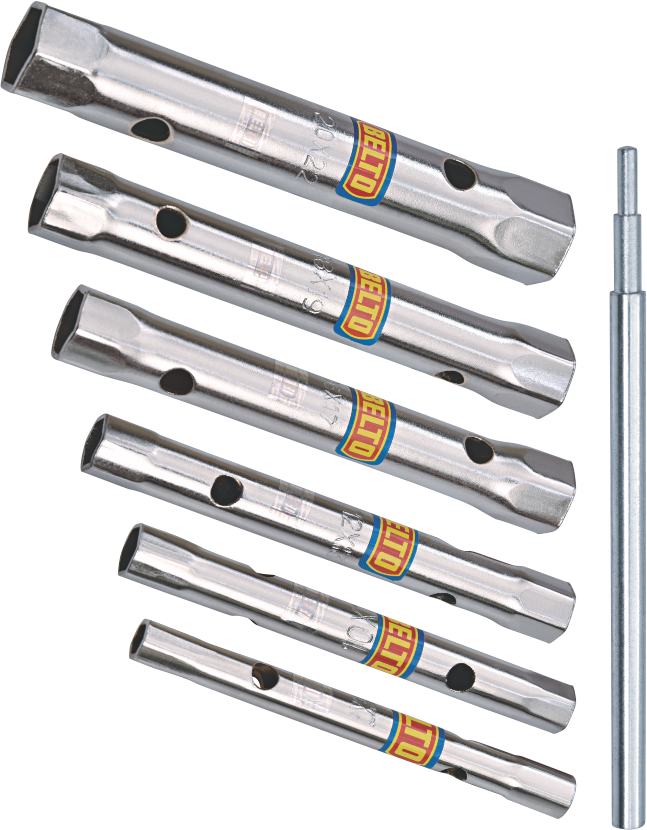

T. BOX SPANNER SET


Raw Material Hardness/TEMPERED Finish
MILD STEEL 60 HRC CHROME PLATED

CODE TYPE Weight Packaging
889 SET OF 8PCS 1.2KG 1 SET
890 SET OF 12PCS 2.5KG 1 SET

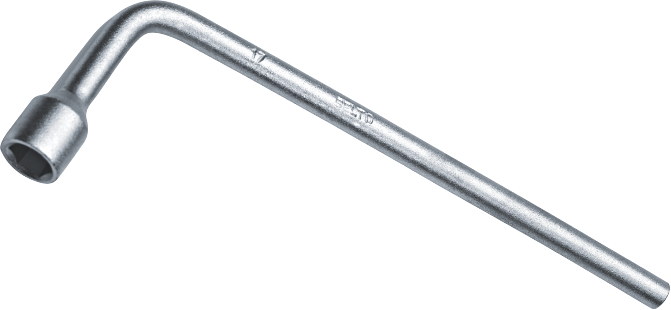

L-TYPE SPANNER CHROME


Raw Material Hardness/TEMPERED Finish
EN8 CARBON STEEL 60 HRC CHROME PLATED

CODE SOCKET Length Weight Packaging
891 17MM THICKNESS - 14MM LENGTH - 350MM 560GM 6 PCS
892 18MM THICKNESS - 14MM LENGTH - 350MM 560GM 6 PCS
893 19MM THICKNESS - 14MM LENGTH - 350MM 560GM 6 PCS
893A 20MM THICKNESS - 14MM LENGTH - 350MM 560GM 6 PCS
894 21MM THICKNESS - 14MM LENGTH - 350MM 560GM 6 PCS

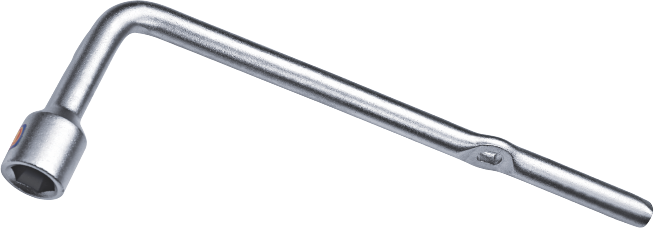

L-TYPE SPANNER G. HOLE


Raw Material Hardness/TEMPERED Finish
EN8 CARBON STEEL 60 HRC CHROME PLATED

CODE SOCKET Length Weight Packaging
895 17MM THICKNESS - 16MM LENGTH - 400MM 560GM 6 PCS
896 18MM THICKNESS - 16MM LENGTH - 400MM 560GM 6 PCS
897 19MM THICKNESS - 16MM LENGTH - 400MM 560GM 6 PCS
898 21MM THICKNESS - 16MM LENGTH - 400MM 560GM 6 PCS

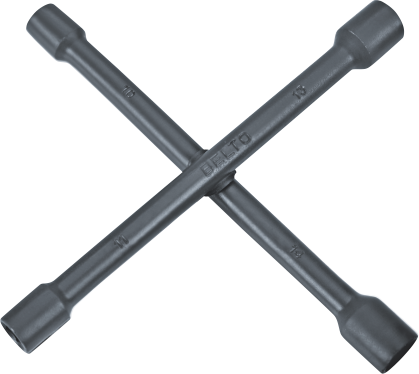

CROSS WHEEL SPANNER SILVER


Raw Material Hardness/TEMPERED Finish
EN8 HIGH CARBON STEEL DROP FORGED WITH TEMPERED SOCKETS SILVER PAINTED

CODE SOCKET Length Weight Packaging
901 10X11
13X14		 THICKNESS - 12MM LENGTH -260 MM 450GM 2 PCS

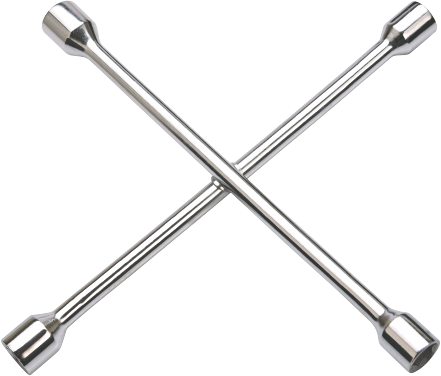

CROSS WHEEL SPANNER CHROME


Raw Material Hardness/TEMPERED Finish
EN8 HIGH CARBON STEEL DROP FORGED WITH TEMPERED SOCKETS CHROME PLATED

CODE SOCKET Length Weight Packaging
902 17X19
18X21		 THICKNESS - 14MM LENGTH -350 MM 680GM 1 PCS
